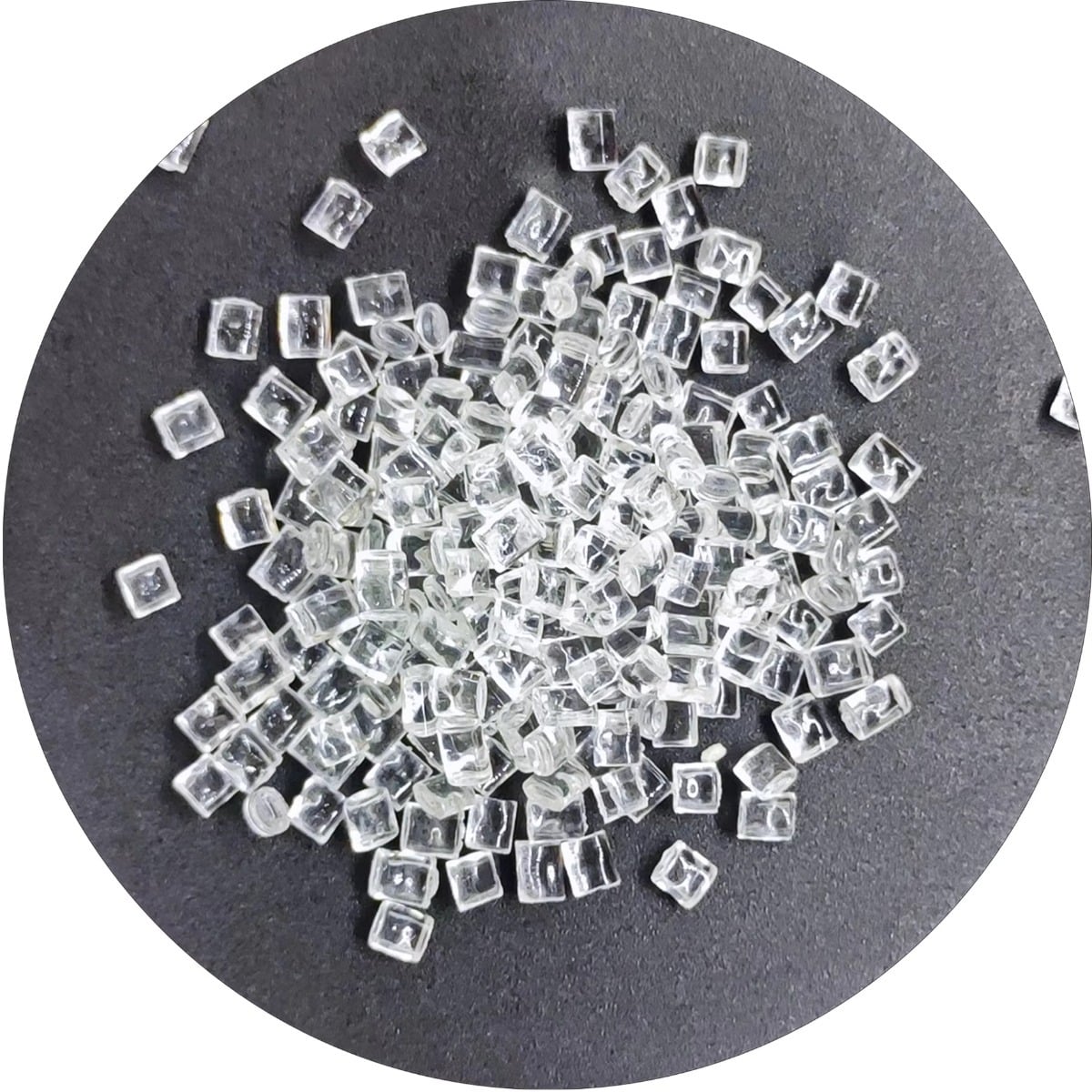

Nylon PA 12, also known as polyamide 12, is a strong yet flexible type of engineered nylon. It’s well-known for being lightweight, durable, and resistant to impact. Because of its versatile nature, this material is used in many different industries, from automotive to electronics.
Nylon PA 12 offers a unique balance between strength and flexibility. It can handle tough conditions, but it’s still easy to work with. This material is also resistant to moisture and chemicals, making it a great option for products that need to last. Whether you need something strong or something that can bend without breaking, nylon PA 12 is a reliable choice.
You’ll often see polyamide 12 used in industries that require durability and flexibility. It’s commonly found in fuel lines, cable coverings, and even sports equipment. Because it’s resistant to chemicals, it’s perfect for parts that might come into contact with oils or fuels. The versatility of nylon PA 12 makes it a popular material in many fields.
Polyamide 12 isn’t just durable—it’s also light, which can be a big advantage in certain applications. Its flexibility allows for easier handling and design freedom, making it ideal for custom parts. Plus, its moisture-resistant nature ensures it performs well in wet or humid environments.
With its unique blend of flexibility, strength, and resistance to harsh conditions, Nylon PA 12 is a top choice for a wide variety of products. Whether you need something tough or adaptable, it’s the material that can get the job done efficiently.
Mechanical strength | parameter | value | unit | norm |
Tensile strength | 50mm/min | 55 | Mpa | ISO 527-2 |
Elongation at Break | 50mm/min | 80 | % | ISO 527-2 |
Flexural Strength | 2mm/min | 80 | Mpa | ISO 178 |
Flexural Modulus | 2mm/min | 1900 | Mpa | ISO 178 |
Izod Notched Impact Strength | 23℃ | 4 | kJ/m2 | ISO 180 |
Thermal performance | parameter | value | unit | norm |
Temperature of Deflection Under Load | 1.8MPa | 80 | ℃ | ISO 75 |
Temperature of Deflection Under Load | 0.45MPa | / | ℃ | ISO 75 |
Melting temperature | / | 178 | ℃ | ISO 11375 |
240-280 | ℃ |
Electrical properties | parameter | value | unit | norm |
Surface resistivity | / | 1015 | Ω | / |
Volume resistivity | / | 1015 | Ω·cm | / |
Other properties | parameter | value | unit | norm |
Water absorption | 23℃,24h | 0.8 | % | ISO 62 |
Flammability | / | / | class | UL94 |
Solid Filler Content | 1h,600℃ | / | % | ISO 3451 |
The box features a transparent window, elegantly framing the wooden hearts inside. This design not only showcases the beauty of the hearts but also allows for easy viewing of the heartfelt messages within, making it a beautiful keepsake that can be displayed and cherished for years to come.
The box features a transparent window, elegantly framing the wooden hearts inside. This design not only showcases the beauty of the hearts but also allows for easy viewing of the heartfelt messages within, making it a beautiful keepsake that can be displayed and cherished for years to come.
The box features a transparent window, elegantly framing the wooden hearts inside. This design not only showcases the beauty of the hearts but also allows for easy viewing of the heartfelt messages within, making it a beautiful keepsake that can be displayed and cherished for years to come.
Frequently asked questions about Engineered Polyamide Compound manufacturing
Our preferred payment methods are T/T. However, we are open to discussing L/C, Paypal upon request.
Yes, we conduct 100% testing on all goods prior to delivery.
We are a polyamide factory.
Engineered polyamide compounds are used in various industries such as automotive parts, electrical components, consumer goods, and industrial machinery. They are commonly found in gears, bearings, electrical housings, and under-the-hood automotive components due to their durability and resistance to heat and chemicals.
Standard delivery time is 7-14 days if the item is in stock. If not, it may take 15-20 days to arrange shipment.
Yes, we can match material colors based on your specified Pantone or RAL number.
