Wholesale Glass Fiber Reinforement PA66 GF 30
Applications of PA66 GF30
PA66 GF30, a polyamide 66 (nylon) reinforced with 30% glass fiber, is known for its excellent mechanical properties, making it a versatile material across various industries.
Key Advantages of PA66 GF30
- High Strength: Its reinforced structure delivers outstanding tensile strength, making it suitable for load-bearing components.
- Excellent Stiffness: The glass fiber reinforcement provides high rigidity, enabling the material to maintain its shape under stress.
- Dimensional Stability: Low shrinkage rates and stability in varying temperatures ensure reliable dimensional accuracy.
- Wear Resistance: Exceptional wear and abrasion resistance make it durable for mechanical parts.
- UV Protection: Improved resistance to UV radiation increases its longevity, especially in outdoor applications.
- High Heat Deflection: Withstands high temperatures, making it ideal for heat-exposed environments.
- Bonding & Welding Capabilities: PA66 GF30 bonds easily, allowing for flexible manufacturing processes.
- Chemical Resistance: Resistant to oil, fuel, and grease, making it perfect for automotive and industrial use.
Common Applications of PA66 GF30
Due to its strong and durable properties, PA66 GF30 is extensively used across multiple industries.
3.1. Automotive Components
Its rigidity and thermal resistance make PA66 GF30 ideal for engine parts, fuel systems, radiator tanks, and structural components like fasteners and cooling fans.
3.2. Industrial Equipment
PA66 GF30’s mechanical properties, combined with heat and chemical resistance, suit it for gears, bearings, rollers, and pump components in industrial machinery.
3.3. Electrical & Electronic Devices
The material’s high mechanical strength and insulation properties make it suitable for electrical components such as circuit breakers, connectors, and switches.
3.4. Consumer Products
From power tools to sports equipment and furniture components, PA66 GF30 is chosen for its durability and strength, meeting the demands of long-lasting consumer goods.
Enhanced Thermal Stability
PA66 GF30’s ability to perform under elevated temperatures makes it highly favorable for applications like oven components, where heat resistance is crucial for product longevity.
Enhanced Thermal Stability
With its durable life cycle and lower material wastage during production, PA66 GF30 is an eco-friendly choice, supporting sustainable manufacturing practices through reduced wear and tear, and efficient use of resources.
Glass Fiber Reinforement PA66 GF 30
FACTS
- chemical designation PA 66 (polyamide 66)
color white,natural,custom made is available
MAIN FEATURES
- High Mechanical Strength
- Improved Dimensional Stability
- Improved Impact Resistance
- Chemical Resistance
- Wear and Abrasion Resistance
- Excellent Stiffness
INDUSTRIES
- Automotive
- Electronics and Electrical Industry
- Industrial Equipment
- Consumer Goods
Technical Data
Mechanical strength | parameter | value | unit | norm |
Tensile strength | 50mm/min | 180 | Mpa | ISO 527-2 |
Elongation at Break | 50mm/min | 4 | % | ISO 527-2 |
Flexural Strength | 2mm/min | 270 | Mpa | ISO 178 |
Flexural Modulus | 2mm/min | 8500 | Mpa | ISO 178 |
Izod Notched Impact Strength | 23℃ | 13 | kJ/m2 | ISO 180 |
Electrical properties
parameter
value
unit
norm
Surface resistivity
/
1015
Ω
/
Volume resistivity
/
1015
Ω·cm
/
Other properties
parameter
value
unit
norm
Water absorption
24h（23℃）
0.7
%
ISO 62
Flammability
/
HB
class
UL94
Glass fiber filler
1h（600℃）
30
%
ISO 3451
Thermal performance | parameter | value | unit | norm |
Temperature of Deflection Under Load | 1.8MPa | 235 | ℃ | ISO 75 |
Temperature of Deflection Under Load | 0.45MPa | 245 | ℃ | ISO 75 |
Melting temperature | / | 250 | ℃ | ISO 11375 |
/Injection molding condition |
|
|
Drying temperature | ℃ | 80~120 |
Drying time | h | 2~6 |
Melting temperature | ℃ | 270~300 |
Injection temperature – Nozzle | ℃ | 280~300 |
Injection molding temperature – front section | ℃ | 270~280 |
Injection molding temperature – middle section | ℃ | 275~290 |
Injection molding temperature – post segment | ℃ | 280~300 |
Mold temperature | ℃ | 80~120 |
Industrial Application Cases

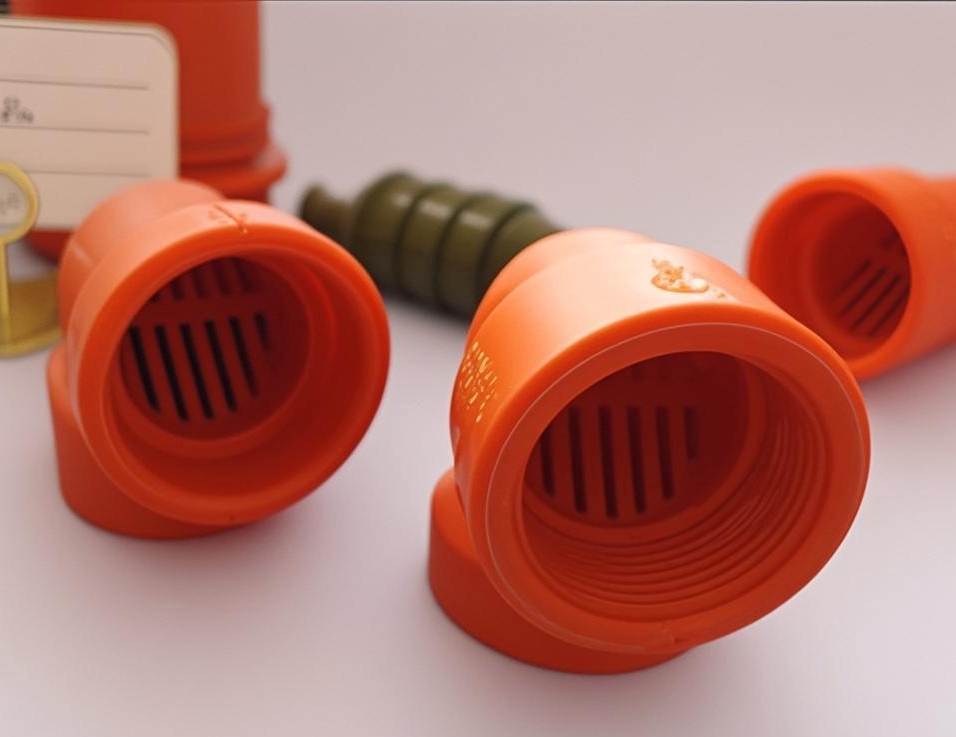

PA66 GF30 For Agricultural Irrigation Components
PA66 GF30 glass-fiber reinforced polyamide 66 exhibits tensile strength ≥180 MPa (ISO 527-2), notched impact strength 12 kJ/m² (ASTM D256), and HDT 255°C (ISO 75-2), with 40% weight reduction versus metal. Chemical resistance and pressure-resistant creep behavior suit long-term fertilizer exposure and hydraulic stress. 30% glass fiber improves dimensional accuracy, minimizing seal failure risks. Compliant with ASTM D4066 flow properties, it enables complex channel injection molding for efficient production. Keywords: glass-fiber reinforced polymer, corrosion-resistant engineering plastic.
PA66 GF30 For Thermal Ventilation Enclosures
PA66 GF30 provides tensile strength ≥170 MPa (ISO 527-2), impact strength 8 kJ/m² (ASTM D256), and HDT 250°C (ISO 75-2) in thermal enclosures, achieving 30% weight reduction vs. aluminum. High glass fiber content ensures structural rigidity under heat, with intrinsic flame retardancy for continuous thermal dissipation. Thin-wall designs align with ASTM D3835 melt flow rates, enhancing molding yield. Surface finish meets aesthetic standards. Keywords: glass-fiber reinforced polymer, heat-dissipating structural material.
Frequently Asked Question
Frequently asked questions about Engineered Polyamide Compound manufacturing
- We offer free samples under 5KG for general grade products, with freight collected.
- Sample payment options include T/T, PayPal, or Trade Assurance.
- Samples are typically dispatched within 3 days after confirmation.
- Full technical support is provided during the sample testing process.
- Shipping can be arranged through your courier or ours, with options such as SF, TNT, UPS, FedEx, DHL, and others.
- The sample fee is refundable when an official order is placed later.
Our preferred payment methods are T/T. However, we are open to discussing L/C, Paypal upon request.
Yes, we conduct 100% testing on all goods prior to delivery.
- We offer standard packaging in 25 kg bags or large bags ranging from 800 kg to 1250 kg.
- Custom packaging solutions are available to meet your specific requirements.
We are a polyamide factory.
Engineered polyamide compounds are used in various industries such as automotive parts, electrical components, consumer goods, and industrial machinery. They are commonly found in gears, bearings, electrical housings, and under-the-hood automotive components due to their durability and resistance to heat and chemicals.
Standard delivery time is 7-14 days if the item is in stock. If not, it may take 15-20 days to arrange shipment.
Yes, we can match material colors based on your specified Pantone or RAL number.
